Part Number: MAD6721GZ / Vendor ID Number: 90 / Custom:

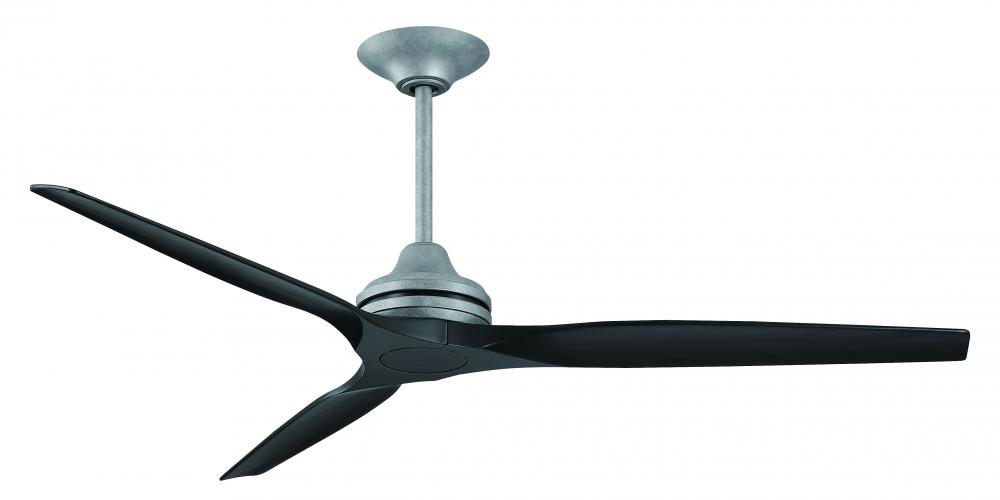

Spitfire DC Motor - GZ

Spitfire DC Motor - GZ
by Fanimation

339
98
Pack Of: 1
Call for Availability
Qty
Product Specification
Dimensions
Height: 21.08"
Width: 64.00"
Length: 64.00"
Product Overview
The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
12900 Cfm On High
16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features
Compatible With Most Smart Home Devices (recquired Controls Sold Separately)
Energy Star Most Efficient 2022
Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)
Tr305 Handheld Remote With 23a Battery Included
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
12900 Cubic Feet per Minute
Electricity Rate:
33 Watts (excluded lights)
Airflow Efficiency:
386 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Gray /vendors/vendorImages gray.jpg
Miscellaneous /vendors/vendorImages miscellaneous.jpg
Style:
Traditional
Option:
Damp Rated
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
8w
Category:
Fan-Multi
Finish:
Galvanized
Option:
Damp
Family:
Spitfire
Voltage:
120 V
Additional Info:
12900 CFM on High
16 speed DC motor with reverse switch, fan speed, light controls, Fresh Air, Safe Exit, Sleep Timer and Home Away features
CHINA
Compatible with most smart home devices (recquired controls sold separately)
Energy Star Most Efficient 2022
Set of (3) Damp rated blades with multiple finishes available and 18 watt CCT Select LED light kit available (sold separately)
TR305 handheld remote with 23A battery included
Air Flow CFM:
12900
Air Flow Efficiency:
386
Amperage:
0.47
Blade Pitch:
14
Canopy:
8.19 Dia x 2.2 H
Diameter:
8.07
Down Rod Included:
12
Electricity Used:
33
Harmonized Codes:
8414.51.3000
Length:
64, 72, 84, 96
Light Kit Included:
No
Max Length:
96
Max Width:
96
Motor Fan Speed:
16
Motor RPM:
112
Motor Size:
153 x 25
Motor Type:
DC
Remote Control Included:
TR305
Ship Carton Height:
10.94
Ship Carton Length:
14.37
Ship Carton Width:
10.43
Ship Weight:
15.61
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
14.18
Airflow Efficiency Low:
1049
Airflow Efficiency Medium:
880
Avg Airflow Efficiency:
376
Avg CFM Energy:
7429
Avg Energy Use Watts:
20
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Blade Pitch Degrees:
14
Canopy Diameter:
8.19 Dia
Canopy Height:
2.2 H
Cap Included:
No
Carton Cubic Feet:
0.95
Case Height:
10.94
Case Length:
14.37
Case Quantity:
1
Case Weight Pounds:
15.61
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
19.42
Ceiling To Bottom:
19.42
21.08
CFM Low:
2958
CFM Medium:
7355
Compatible Accessories:
CCK6721GZ, DR1-12GZ, DR1-18GZ, DR1-24GZ, DR1-36GZ, DR1-48GZ, DR1-60GZ, DR1-72GZ, DR1-CPGZ, SCK1-52GZ
Compatible Blades:
B6720-64BL, B6720-64BN, B6720-64DF, B6720-64DWA, B6720-64MW, B6720-64N, B6720-64WE, B6720-64WK, B6720-64WW, B6720-72BL, B6720-72BN, B6720-72DF, B6720-72DWA, B6720-72MW, B6720-72N, B6720-72WE, B6720-72WK, B6720-72WW
B6720-84BL, B6720-84BN, B6720-84DF, B6720-84DWA, B6720-84MW, B6720-84N, B6720-84WE, B6720-84WK, B6720-84WW, B6720-96BL, B6720-96BN, B6720-96DF, B6720-96DWA, B6720-96MW, B6720-96N, B6720-96WE, B6720-96WK, B6720-96WW
Compatible Light Kits:
LK6721BDCGZ
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.47
Current Draw Low:
0.06
Current Draw Medium:
0.14
Damp Rated:
Yes
DOE Classification:
LSSD
DOEFTC Uploaded:
Yes
Downrod Length:
12
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.07
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Light Kit Energy Star:
Yes
Max Ceiling Slope:
19
Max Watt:
33
Maximum Slope Degree:
19
Motor Finish Method:
Painted
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
112
RPM Low (II):
29
RPM Medium (IV):
67
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
3
Watts Medium:
8
Manufactured By:
Fanimation
