Item Sales Info
Part Number: 65/691 / Vendor ID Number: 81 / Custom:

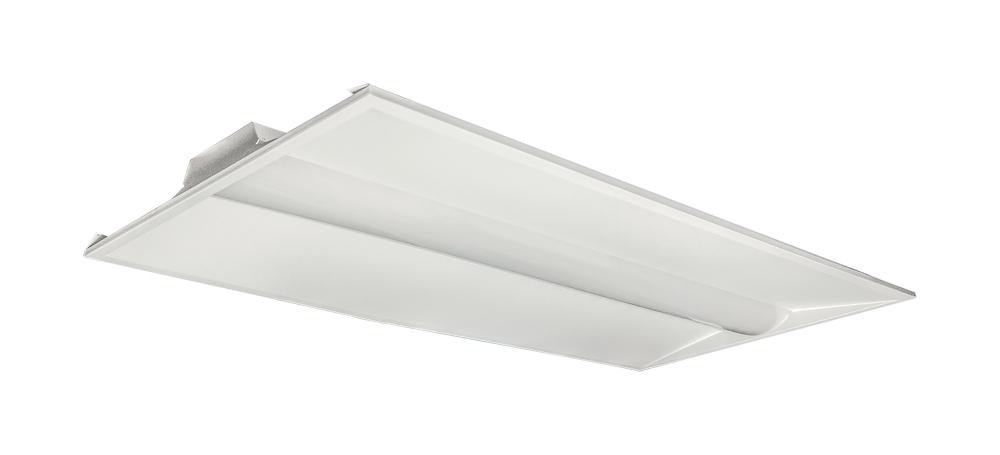

2X4 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable;

2X4 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable;
by Nuvo

162
99
Pack Of: 1
Call for Availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.61"
Width: 23.74"
Finish
White
Product Overview
2X4 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V
Product Availability
    Purchase now and we'll ship when it's available
Technical Details
Details
Category:
Track Ltg.
Subcategory:
Track Heads
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Troffer
Sub Category:
Center Basket
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
25.67
Each Length:
3.74
Each Width:
49.49
Length:
47.72
Lumens:
3300L-5500L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.300-0.108/0.400-0.144/0.500-0.181A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Standard
DLC Primary Use:
2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube:
2.7496
Each Quantity:
1
Efficacy:
110.00/110.00/110.00 LPW
FCC Compliant:
Yes
Feature 1:
Volumetric design
Feature 2:
Watts: 30W - 40W - 50W
Feature 3:
Lumens: 3300L - 5500L
Feature 4:
Color temperature: 3500K/4000K/5000K
Feature 5:
Operating temperature: -20C (-4F) to a maximum of 40C (104F)
Finish Family:
White
Fixture shape:
Rectangle
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
70W-125W
IC Rated:
Yes
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:

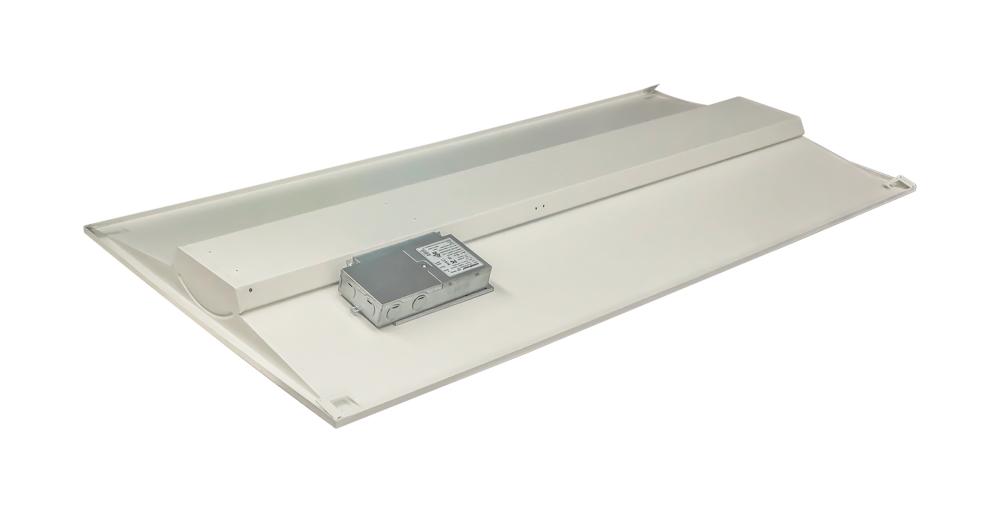

SATCO|NUVO's 65-691 is a foot by four foot single basket troffer which features selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flick
Material:
Steel
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Panel Size:
2x4
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
A two foot by four foot single basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, an
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
2X4 SINGLE BASKET TROFFER
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
11.24
Manufactured By:
Nuvo
